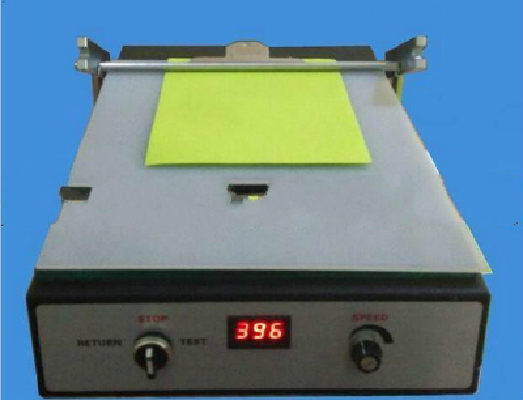

Laboratory coating machine

Shaanxi laboratory coating machine

Main parameters: This equipment adopts the pole changing motor, precise control coating speed.

1 coated base size: 570mm * 340mm

2 effective film size: long 430mm width 300mm

3 coating speed: 0 ~ 2cm/s stepless speed change

4 total power: 200W

5 power: 50Hz 220V

6 dimensions: 570mm * 340mm * 100mm * VB (L * w * h)

7 weight: about 20Kg

8 film thickness: by precision wire rod coating film (the film can be thin film wet film thickness of 1.5um)

9 wire rod size diameter 1.0mm, length 400mm, effective coating width 300mm

Production of laboratory coating machine

Operation instructions:

1 connect the power supply.

2 will be coated with the substrate (such as: black and white paper) flat on the base of the coating, and clamp.

3 the lateral push rod is arranged on the fixing rod on both sides of the coating base.

4 the film is placed in front of the lateral push rod.

5 adjust the speed control knob, select the appropriate coating speed.

6 directly in front of the film to put the right amount of coating.

7 press the "start" button and start coating.

8 to be coated after the stop, the remaining paint scraping waste collection disk.

9 was a good model for the next operation.

Laboratory coating machine is my company's main products

Four. Matters needing attention:

1 the coating base should be kept clean and no debris stuck in the above, so as not to affect the brightness of the coating base, thereby affecting the next coating; if accidentally paint dripping in the coated base, should also be timely cleaning.

2 to determine the size of the coated substrate, the coating will be used to clamp the substrate, in order to improve the fixed effect.

3 after each use of the equipment, should be promptly cleaned waste.
