Laboratory coating machine all adopt the imported parts and excellent inexpensive price, many multinational enterprises and research institutions, the favor of many domestic and foreign famous universities, equipped with OSP precision wire rod, break through the traditional blade, wire rod coating limit.

By controlling the speed and the stability of the pressure to ensure the coating effect, to ensure the uniformity and stability of the coating

1. Use:

As the main factors affecting the film with coating speed and pressure in the coating device, etc., thus by artificial coating the coating often appear inconsistent, especially of differences between humans is bigger, this comparison between model test results difficult.

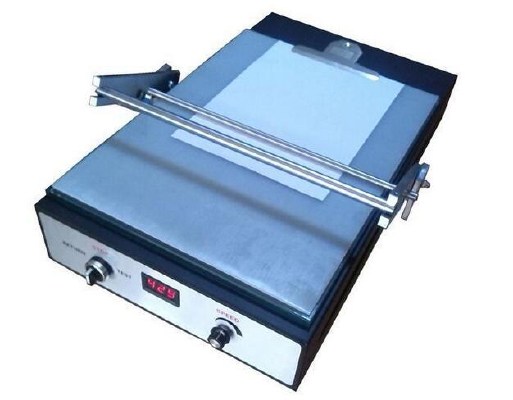

The company's automatic film coating machine is designed to make the operator easily on different substrates coated with a precise wet film and carefully designed to greatly improve the reproducibility of the film.

Two. The main parameters: the device using the pole changing motor, precise control coating speed.

1 coated base size: 570mm * 360mm

2 effective film size: long 430mm width 300mm

4 coating speed: 0 ~ 2cm/s stepless speed change

5 total power: 200W

6 power: 50Hz 220V

7 outline dimension: 570mm * 370mm * 140mm (L * w * h)

8 weight: about 20Kg

9 film thickness: by precision wire rod coating film (the film can be thin film wet film thickness of 1.5um)

10 wire rod size diameter 10mm, length 400mm, effective coating width 300mm

Three. Use the operation instructions:

1 connect the power supply.

2 will be coated with the substrate (such as: black and white paper) flat on the base of the coating, and clamp.

3 the lateral push rod is arranged on the fixing rod on both sides of the coating base.

4 the film is placed in front of the lateral push rod.

5 adjust the speed control knob, select the appropriate coating speed.

6 directly in front of the film to put the right amount of coating.

7 press the "start" button and start coating.

8 to be coated after the stop, the remaining paint scraping waste collection disk.

9 was a good model for the next operation.

Four. Matters needing attention:

1 the coating base should be kept clean and no debris stuck in the above, so as not to affect the brightness of the coating base, thereby affecting the next coating; if accidentally paint dripping in the coated base, should also be timely cleaning.

2 to determine the size of the coated substrate, the coating will be used to clamp the substrate, in order to improve the fixed effect.

3 after each use of the equipment, should be promptly cleaned waste.

Shijiazhuang Oslo School Machinery Technology Co., Ltd. is designed to do precision coating, mainly engaged in measuring rod, rod seat, a steel wire scraping rods, miniature roller, line bar coater, lab coater and other products;
